QNScheduling is a simulation framework for scheduling quantum network applications using Packet Generation Attempts (PGAs). The simulator simulates on-demand entanglement packet scheduling with static and dynamic scheduling strategies, different routing schemes, network-layer modeling, and stochastic entanglement generation with link contention.

Overview

Key Features

Application Generation: Generate batches of quantum applications with configurable source/destination nodes, periods, packet counts, and EPR pair requirements.
Budget Computation: Compute per-application PGA budgets based on network-layer models and entanglement swapping.
Flexible Scheduling: Choose between static EDF timetables or dynamic online EDF-like scheduling strategies.
Stochastic Simulation: Run simulations of entanglement generation/swapping with link contention, deferrals, retries, and drops.
Comprehensive Analysis: Export results and summary metrics as CSV files for analysis.

Architecture

Dynamic Online Scheduler Workflow

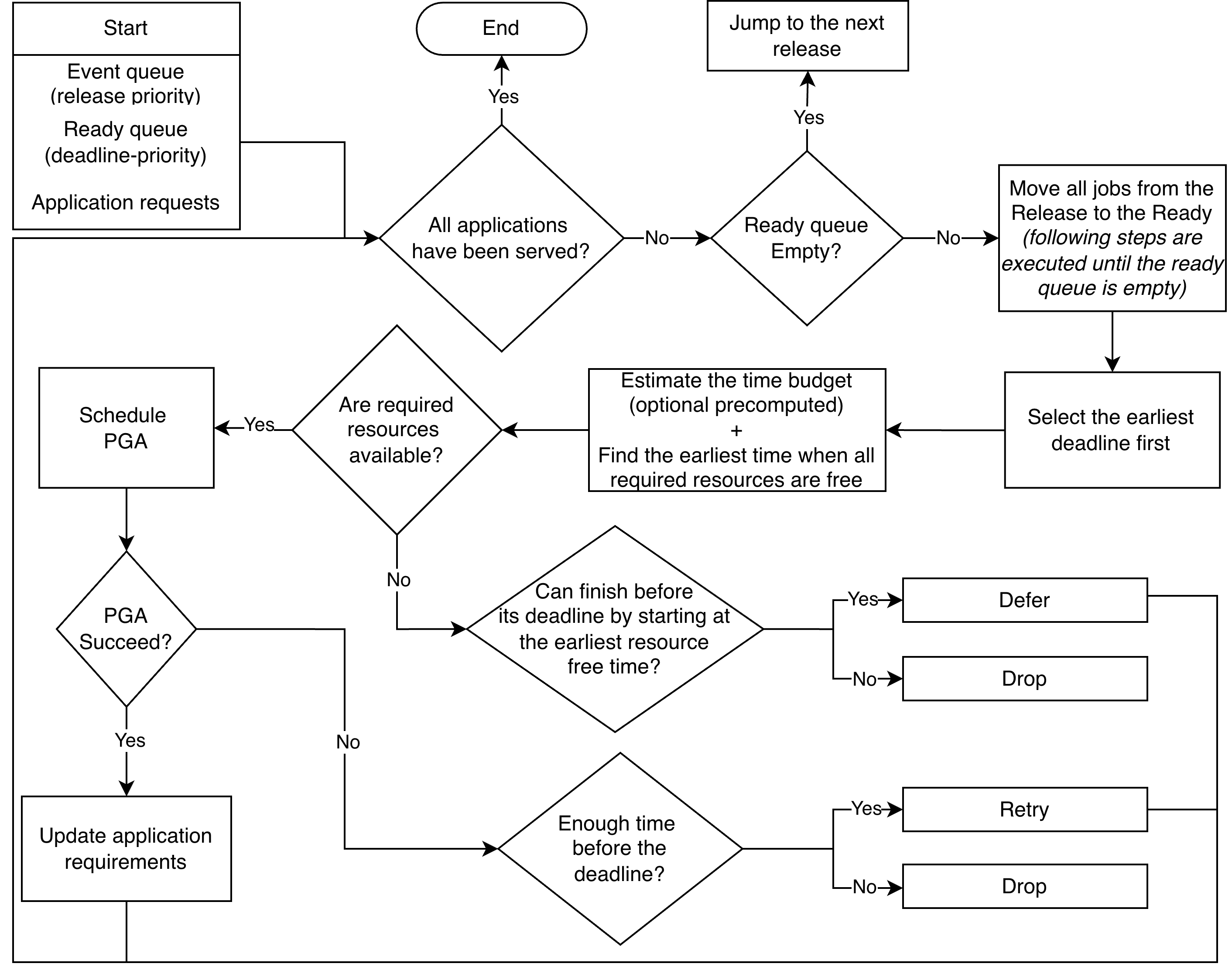

The high-level workflow of the dynamic scheduler for entanglement packets:

Network-Layer Model

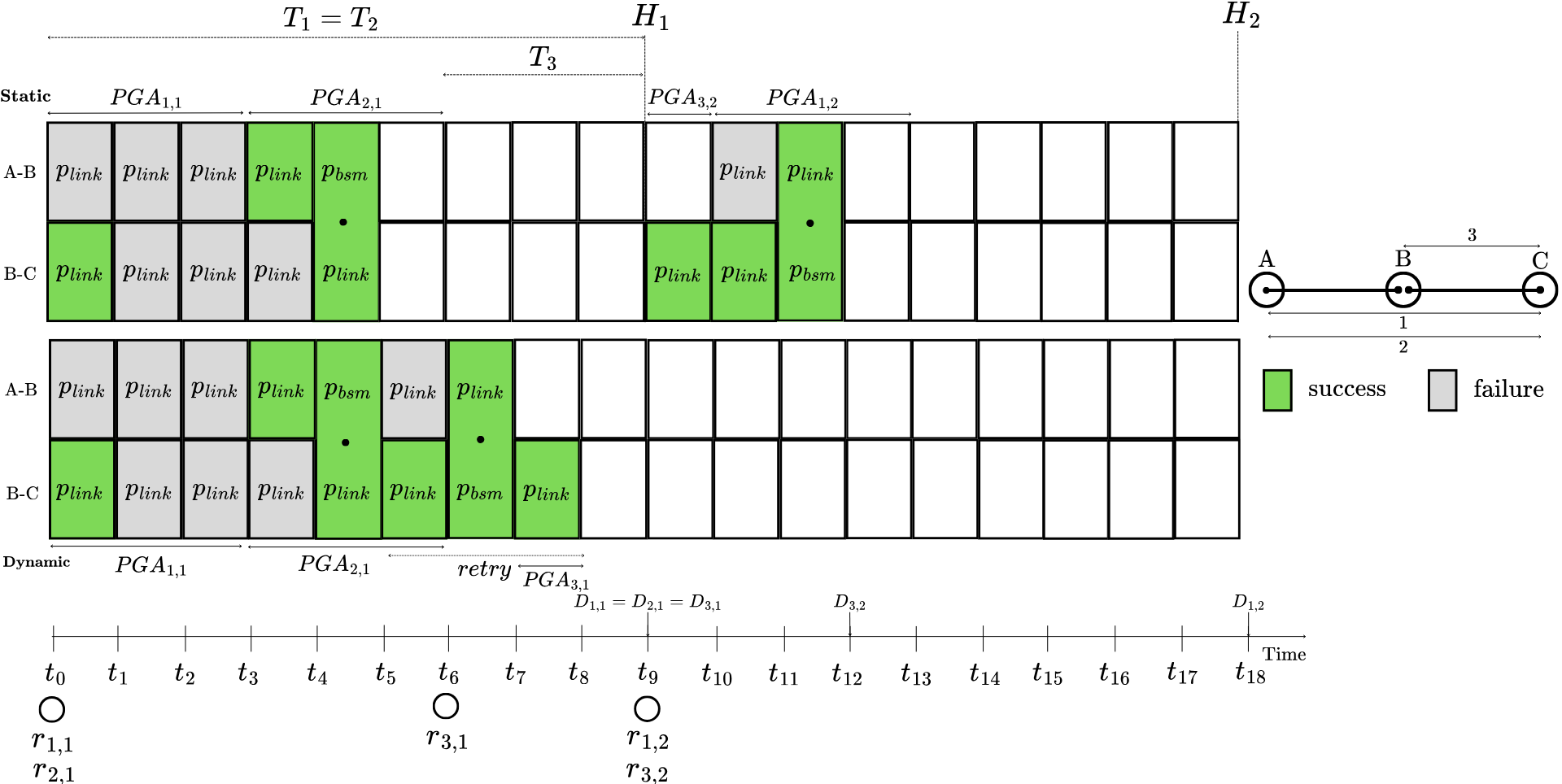

Example of the network-layer model with two schedulers (linear chain A-B-C) and 3 applications/flows:

Network Topologies

QNScheduling provides basic and advanced network topologies stored as .gml files.

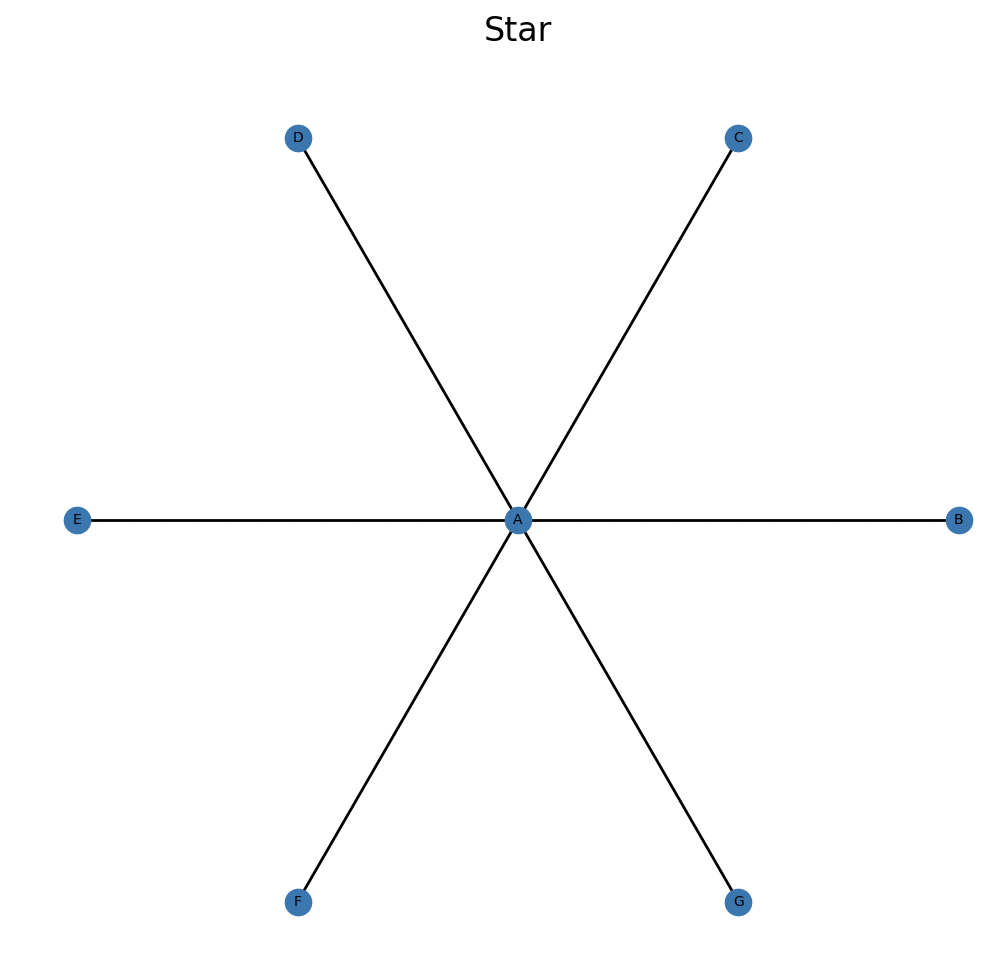

Basic Topologies include simple networks like chains, meshes, rings, stars, and dumbbells:

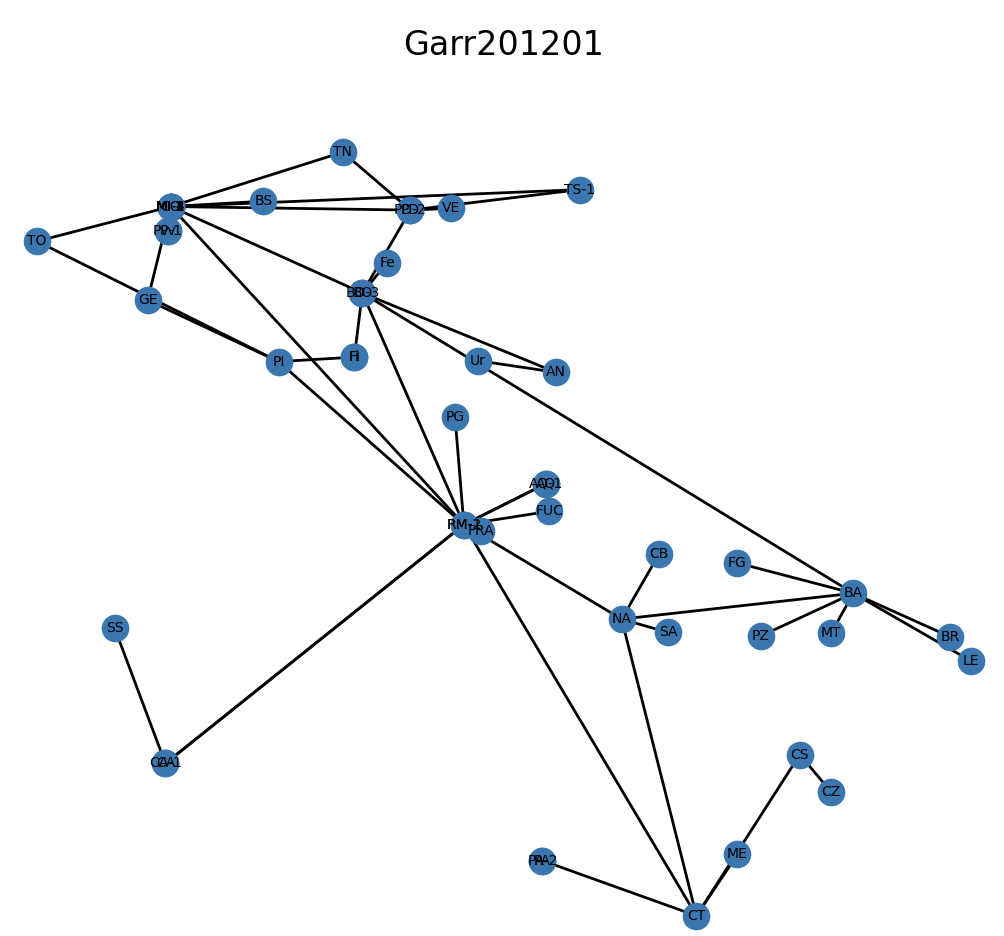

Advanced Topologies include real-world network topologies from the Internet Topology Zoo:

Getting Started

Installation

Create a Python Virtual Environment:

python3 -m venv .venv
source .venv/bin/activate
python3 -m pip install -U pip

Install the requirements:

pip install -r requirements.txt

Verify the installation:

pytest

Quick Start

Run the simulator with default settings:

python -m scheduling.main

Usage Guide

Scheduling Modes

Static Scheduler

Use --scheduler static for offline precomputed EDF scheduling:

Builds a static schedule over a hyperperiod horizon
Uses a conflict graph for concurrency (applications sharing links cannot overlap)
Performs feasibility checks:
- Rejects applications with utilization U = duration/period > 1
- Rejects schedules that would miss deadlines (end > deadline)

Dynamic Scheduler

Use --scheduler dynamic for online EDF-like scheduling:

Online scheduling with dynamic arrival handling
Arrivals are periodic by default; use --arrival-rate for Poisson process arrivals
Supports admission control, scheduling, deferral, retry, and drop mechanisms

Routing Strategies

QNScheduling provides different routing strategies:

Shortest Path Routing (Default)

Use --routing shortest (default) for shortest path routing:

Computes shortest paths that meet minimum fidelity requirements
Minimizes the number of hops within the maximum path length (L_max) derived from fidelity constraints
Suitable for most basic use cases and simple network topologies
Does not consider link congestion or capacity constraints
Selects the first feasible path found

Yen Random Routing

Use --routing random for randomized path selection among feasible paths:

Uses Yen’s K-shortest paths algorithm
Randomly selects among all shortest paths that satisfy fidelity constraints
Provides load balancing through randomization
A baseline for distributed routing without global network state awareness
Each application gets a uniformly random feasible path

Hub-Aware Routing

Use --routing degree for hub-aware routing that avoids high-degree nodes:

Selects paths that minimize the maximum node degree among internal (non-endpoint) nodes
Helps avoid congestion at network hubs and central nodes
Distributes load away from highly connected nodes
Among feasible paths, choose the shortest path

Capacity-Aware Routing

Use --routing capacity for capacity-aware routing with explicit utilization tracking:

Tracks link utilization and excludes overloaded links from routing
Routes traffic through less congested paths to balance network load
Requires setting --capacity-threshold to define the maximum acceptable link utilization
Computes PGA duration for each application and updates link capacities incrementally
Applications are routed in order of their relative deadline (PGA duration / period)
Helps prevent bottlenecks in heavily loaded networks

All routing respect the minimum fidelity threshold by computing a maximum path length (L_max) based on the application’s minimum fidelity requirement and the network’s initial fidelity. Paths exceeding this length are not considered.

PGA Status

Status appearing in pga_results.csv:

completed:: Generated required E2E EPR pairs within budget time (PGA)
failed:: Ran but didn’t generate enough pairs by the end of PGA
retry:: Failed attempt that is rescheduled again (dynamic scheduler)
defer:: Could not start due to busy links, rescheduled to later (dynamic scheduler)
drop:: Cannot start/finish by deadline constraints (dynamic scheduler)

Command-Line Options

Run python -m scheduling.main --help for the complete list of options.

Network Configuration

--config, -c: Path to network topology .gml file (default: configurations/network/Dumbbell.gml)
--routing, -r: Routing scheme: shortest (default, fidelity-constrained shortest path), random (Yen random), degree (hub-aware), or capacity (capacity-aware)
--capacity-threshold, -ct: Capacity threshold for routing capacity per link (used with capacity routing)

Application Parameters

--apps, -a: Number of applications to generate (a)
--inst MIN MAX, -i MIN MAX: Range of number of required entanglement packets per application (I_a)
--epr MIN MAX, -e MIN MAX: Range for EPR pairs requested per application (q_a)
--period MIN MAX, -p MIN MAX: Range for application periods in seconds (T_a)
--min-fidelity MIN MAX, -f MIN MAX: Range for application minimum fidelity (F_a). If omitted, minimum fidelity is not considered.

Physical Layer Parameters

--ppacket, -pp: Target probability to compute PGA duration (p_packet)
--memory, -m: Memory multiplexing: number of independent link-generation trials per slot (m)
--pswap, -ps: Bell State Measurement probability success (p_bsm)
--pgen, -pg: EPR generation success probability per trial (p_gen)
--slot-duration, -sd: Slot duration in seconds (τ)

Scheduler Options

--scheduler, -sch: Scheduling strategy: static or dynamic
--hyperperiod, -hp: Number of hyperperiod (H_i) cycles to schedule/simulate (static scheduler only)
--arrival-rate, -ar: Mean arrival rate λ for Poisson arrivals (dynamic scheduler). If omitted, arrivals are periodic.

General Options

--seed, -s: RNG seed for reproducibility (NumPy)
--output, -o: Output directory root (default: results)

Example Commands

Dynamic Scheduler with Poisson Arrivals

python -m scheduling.main \
  --config configurations/network/basic/Dumbbell.gml \
  --apps 2 \
  --inst 2 2 \
  --epr 2 2 \
  --period 10.0 10.0 \
  --ppacket 0.1 \
  --memory 50 \
  --pswap 0.95 \
  --pgen 0.001 \
  --min-fidelity 0.6 0.6 \
  --slot-duration 0.0001 \
  --seed 42 \
  --scheduler dynamic \
  --arrival-rate 1.0 \
  --output results

Static Scheduler with Hyperperiod

python -m scheduling.main \
  --config configurations/network/basic/Dumbbell.gml \
  --apps 2 \
  --inst 2 2 \
  --epr 2 2 \
  --period 10.0 10.0 \
  --hyperperiod 2 \
  --ppacket 0.1 \
  --memory 50 \
  --pswap 0.95 \
  --pgen 0.001 \
  --min-fidelity 0.6 0.6 \
  --slot-duration 0.0001 \
  --seed 42 \
  --scheduler static \
  --output results

Capacity-Aware Routing with Dynamic Scheduler

python -m scheduling.main \
  --config configurations/network/basic/Dumbbell.gml \
  --apps 2 \
  --inst 2 2 \
  --epr 2 2 \
  --period 10.0 10.0 \
  --ppacket 0.1 \
  --memory 50 \
  --pswap 0.95 \
  --pgen 0.001 \
  --min-fidelity 0.6 0.6 \
  --slot-duration 0.0001 \
  --seed 42 \
  --routing capacity \
  --capacity-threshold 0.8 \
  --scheduler dynamic \
  --arrival-rate 1.0 \
  --output results

Output and Metrics

Output Structure

Each run creates a new folder under results/seed_<seed>/runN/ containing:

app_requests.csv: Per-application request details including source node, destination node, minimum fidelity, period, and EPR requirements.
link_utilization.csv: Per-link busy time and utilization statistics over the observed makespan.
link_waiting.csv: Per-link waiting totals, average waiting time, and average queue length metrics.
params.csv: Complete parameter set used for the run, including runtime and run number.
pga_results.csv: Detailed per-attempt (PGA) logs with arrival time, start time, burst duration, completion time, waiting time, status, and more.
summary.csv: Aggregate metrics including makespan, throughput, completion ratios, waiting statistics, and utilization statistics.
summary_per_app.csv: Per-application breakdown showing counts of each status type and PGA duration statistics.

Key Performance Metrics

Throughput Metrics

Througput (PGAs completed per unit time)
Completion ratios (completed/total PGAs)

Timing Metrics

Total makespan (simulation time)
Average PGA duration
Per-link waiting times
P90/P95 waiting times

Resource Utilization

Per-link utilization
P90/P95 utilization
Per-link queue lengths
P90/P95 queue lengths

Quality Metrics

Average Minimum fidelity per application
Average number of hops
Drop ratios (due to deadline misses)
Retry and deferral statistics (dynamic scheduler)

API Documentation

Modules

QNScheduling
- scheduling package
- utils package
